Mk2 Escort rear arch plastic panels. Top one is standard and the bottom one has
been flocked.Flocking Ace !
What is Flocking?
Flocking is the coating of a
substrate with nylon fibres using high voltage, electro-static equipment.
Each individual nylon flock fibre is just a fraction of a millimetre thick.
Nylon is used because of it's excellent durability and strength, a high melting
point (220°c)
and superior lasting qualities. It is an ideal candidate for application which
requires abrasive resistance and resiliency.
An electrostatic charge is generated that propels the fibres at a high velocity
onto the adhesive coated substrate. This causes the flocking fibres to penetrate
and imbed in the adhesive at right angles to substrate. This forms a high
density, uniform flock coating or layer.
This dense and durable finish has excellent anti-glare properties. Hence its use
on WRC car interiors.
FAQ
What is flocking? It is a coating of nylon fibres applied using electrostatics.
Why do WRC cars have flocked dashes? The nylon fibres embedded end on in correct
electrostatic flocking absorb the light giving it great anti glare properties.
This ensures that no matter how much sunshine, from any angle, the reflection of
the dash is not seen in the windscreen.
What can be flocked? Pretty much any non-porous material can be flocked.
Why do you need electrostatics? The 60,000v electrostatic charge propels the
fibre end on into the adhesive. Without the static charge the coating would be
un-durable and shed its fibres. It would also be un-uniform, patchy and not have
the same anti glare properties.
Is it water proof? Yes, the nylon fibres are waterproof and so is the special
adhesive. We have coated interior roof linings for the boat building industry
where water resistance is always a requirement.
How durable is the finish? The finish is very durable. Many OE manufacturers use
it in glove compartments and boot interiors for this reason. The nylon fibres
are very hard wearing. We also use a special two-part
epoxy adhesive to ensure ultimate durability so that no fibres will be shed over
time.
How do I clean my flocked dash? The best way to clean your dash is with a hoover
using a brush attachment. If you spill something on it, warm water and a cloth
can be used to remove it.
Examples of work done: (Click on the photos to enlarge)

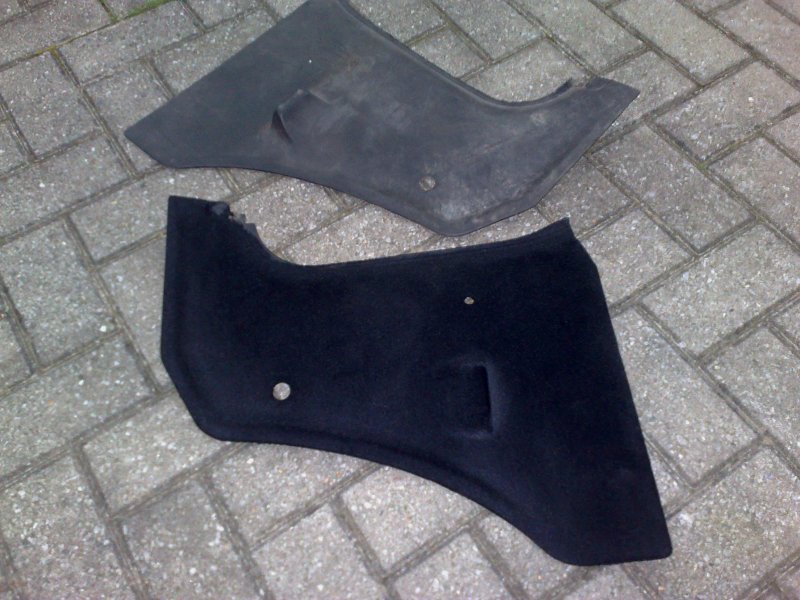

Mk2 Escort rear arch plastic panels. Top one is standard and the bottom one has
been flocked.

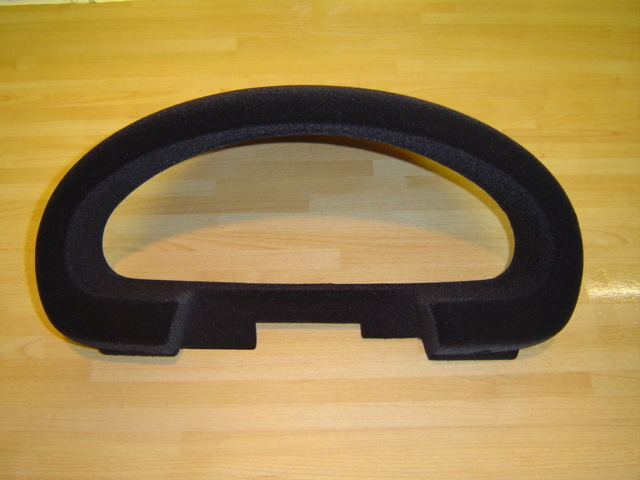

Mk2 Escort dashboard panel where the clock goes in the round hole.
For a quote, please email me at kev@kevminay.com
Example prices:
Escort Mk2 Dash top £35.00 / Lower piece (clock surround) £10.00
Evo 5 Dash top £60
